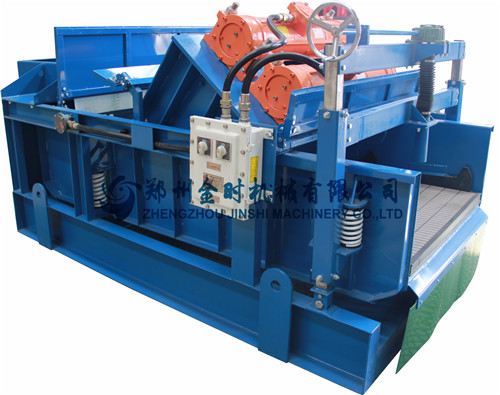

JZS270-4P shale shaker

Time：2019-05-07


Ⅰ. Usage and Applicability

JZS series Shale Shaker is the primary solids control equipment in the drilling fluid solids control system.

The shale shaker sreens the drilling fluid with great amount cuttings,separates the large-size solid particles ,and sent the drilling fluid to the next seperating equipments

JZS series shale shaker has the advantages of simple structure,reliable performance,large disposal capacity,long service life,and simple maintenance.

Ⅱ. Product features

1.Can be used with plate-type screen or wavy screen according to the customers requirements,for different drilling conditions.

2.Easy to change the screens,unsnatching the hook plate by releasing the hook plate bolts and can change the screens rapidly.

3.Adjusting the screen box angle between -2°~+6° by rotating the control hand wheel in the cases without stop.

4.Installed with splash baffle, scalable reeled splash cloth,compact structure,and has a good splash effect.

5.Can be used as single shale shaker or several combined shakers.

III. Main technical parameters

Model	JZS280-3P	JZS270-4P	JZS240-3P	JZS220-3P	JZS180-2P
Motor power	2×2.2 kW	2×2.2 kW	2×2.2 kW	2×2.2 kW	2×1.3 kW
Screen area(m²)	3×0.833×1.15	4×0.585×1.165	3×0.7×1.15	3×0.7×1.05	2×0.833×1.15
Shaking intensity（g）	7.2 g	7.2 g	7.2 g	7.2 g	7.2 g
Discharge capacity	42 l/s	40 l/s	35 l/s	30 l/s	26 l/s
Adjustable range	-2°～+6°	-2°～+6°	-2°～+6°	--2°～+6°	-2°～+6°
Overall dimension,mm	3140×1980×1540	2970×1980×1530	2700×1980×1540	2700×1900×1540	2300×1940×1300
Weight	2000 kg	2000kg	1900kg	1700 kg	1200kg
