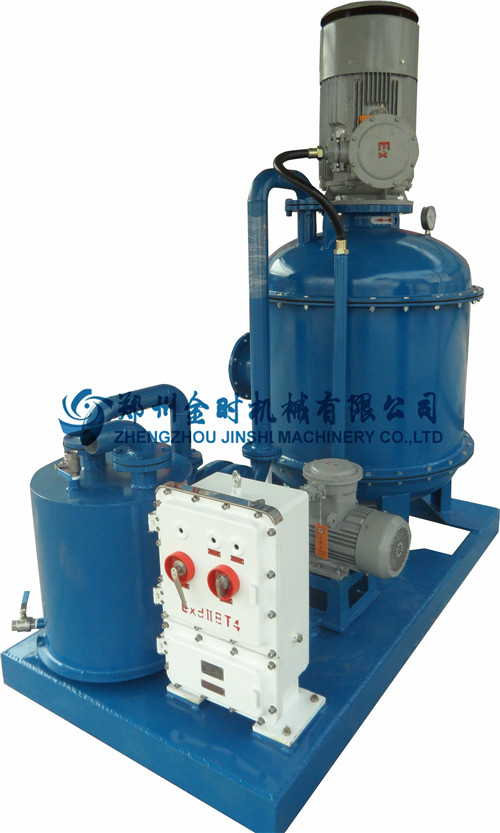

JZCQ-1/4(240) vacuum degasser

Time：2019-05-07


1. Usage and Application Range

JZCQ series Vacuum Degasser is solids control equipment for treatment of gas cut drilling liquid. It can get rid of incursive gas quickly in drilling liquid to recover specific gravity of drilling liquid and stabilize its performance. It is indispensable equipment in exploratory well and drilling in ultradeep well and under-balanced drilling.

2. Product features

i. Capacity is large,gas removal efficiency is high and deal with gas mud serious and change it normal quickly.

ii. The vacuum pump is cooled with water loop and suitable for safer evacuation of combustible gas.

iii. The working condition can be saw from the viewing window,and the working condition can be adjusted by pressure regulating valve,can make sure the degaser works under optimum condition

3. Main technical parameters

Model	JZCQ-1/4(240)	JZCQ360-180	JZCQ-300
Discharge capacity	200～260 m³/h	300～360 m³/h	280～320 m³/h
Vacuum degree	280～400 mmHg	400～550 mmHg	380～500 mmHg
Efficiency	≥95%	≥95%	≥95%
Main motor power	15 kW	22 kW
Vacuum pump motor power	2.2 kW/3 kW（60Hz）	4 kW/5.5 kW（60Hz）	3 kW/4 kW（60Hz）
Inlet diameter	5″	6″	8″
Outlet diameter	6″	8″	8″
Weight	1850 kg	2500 kg	2800 kg
Overall dimensions	1990×1200×2300mm	2200×1220×2400 mm	2500×1400×2100mm
